Drake Accounting - Installing MICR Fonts

Article #: 15276

Last Updated: December 05, 2024



Tags: Drake AccountingDAS

Drake Accounting logo

Important  This process will install the OCR-A font within Drake Accounting. The OCR-A font may be needed even if not using a MICR printer, such as when Routing and Account Numbers do not print as expected.

  1. If you are missing the required MICR fonts for Drake Accounting®, you can download them by navigating to http://dasapps.drakesoftware.com/deployment/fonts.zip

    • Copy and paste the URL into your browser address bar.

  2. Once the download is complete, select the download folder to open it.

  3. Right click anywhere in the folder and select Extract All.

  4. Choose a destination folder to extract the files. A suggested folder will be displayed, but you can choose an existing folder on your computer or make a new folder for the files. Make sure that the option Show extracted files when complete is checked.

  5. Click Extract.

  6. Open that destination folder and select all the fonts by using Ctrl+A on your keyboard.

  7. Right click on the selected fonts and click Install. This process will install all selected fonts at the same time.

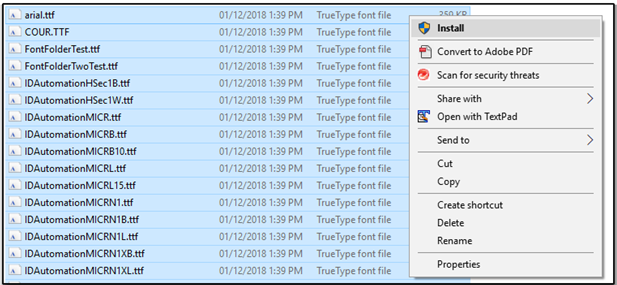

Installing MICR font screen

  1. To confirm the installation of the fonts, go to Control Panel > Personalization > Fonts or check to ensure that the fonts are available on the drive on which you have installed DAS (for example C:\Windows\Fonts).

  2. You may need to restart your computer for the fonts to be successfully installed.

  3. Once the computer has been restarted, go into DAS > Financial > MICR Calibration to recalibrate your newly installed fonts.
